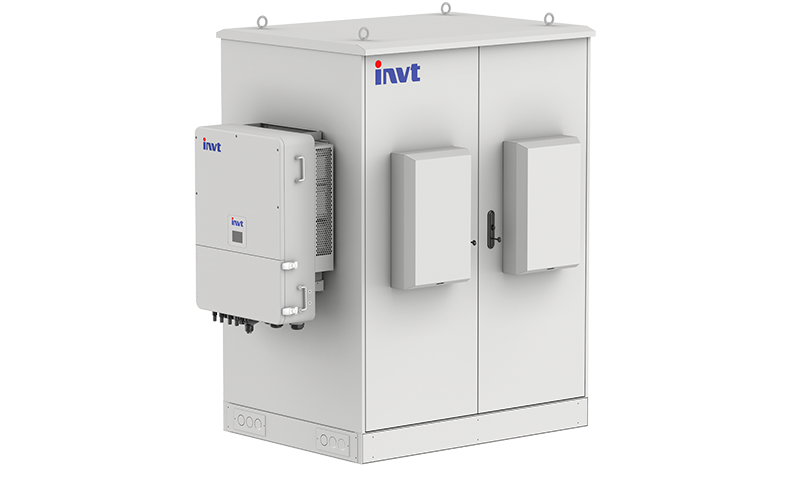

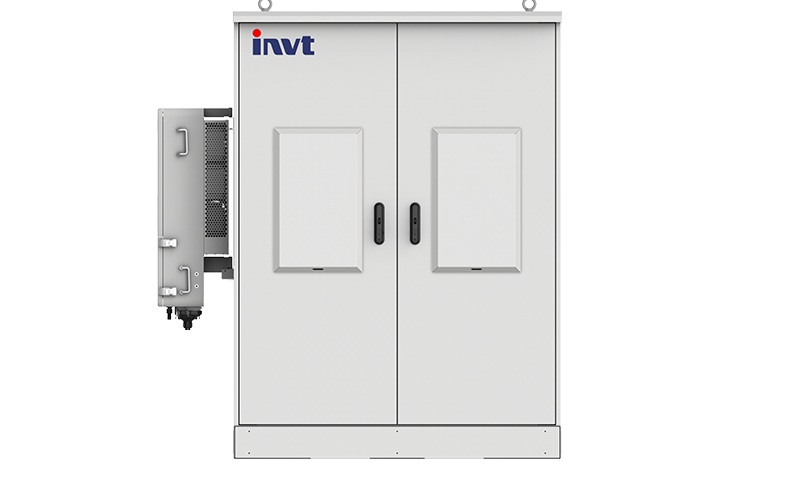

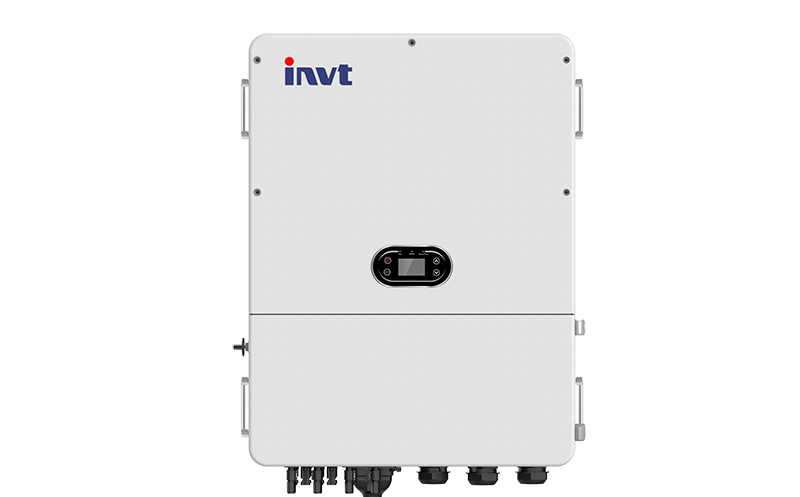

XD30-60KTR Three Phase Hybrid Inverter

Price: #########

Stock: Out of stock. Delivery within 30 days after order confirmation.

The XD30-60KTR three-phase high-voltage energy storage inverter adopts a dual-channel MPPT design and is compatible with 6000W+ high-power components, realizing efficient high-power output. It supports real-time online operation and maintenance, one-key worry-free, intelligent charging and discharging control, and green power life. It suits high-end villas, communication base stations, residential electricity, and other scenarios.

Technical specifications:

• 4 MPPT trackers 150 % DC input oversizing , MAX.PV input current 20A ,
• Compatible with high power PV modules , Max. charge/discharge current 200A
• 150% EPS peak output power , IP66 protection, DC&AC Type ll SPD: prevent lightning damage
• Smart I-V curve diagnosis function: locate PV string faults accurately and automatically detect faults
• Support optional AFCI function , EPS switching under 10ms , Support multi-inverters in parallel
• Standard generator interface, support for generator and smart load access
