INVT XD5KTL-AIO Energy storage system

Price: 11,840,000

Stock: Ready

Start order Share

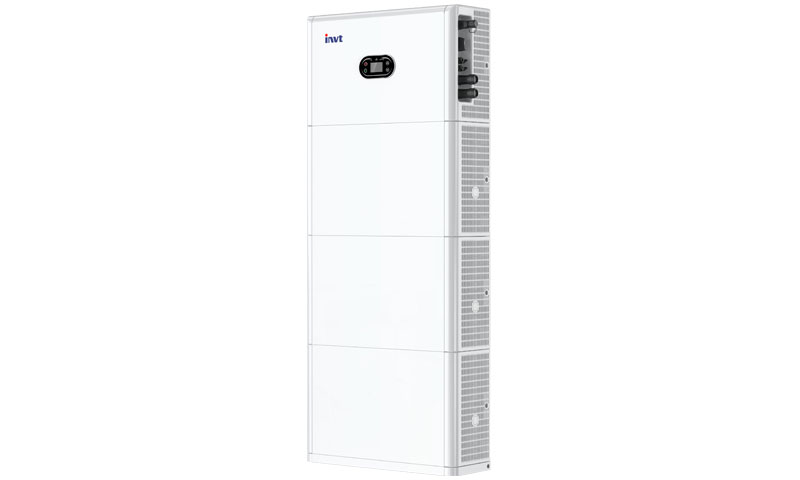

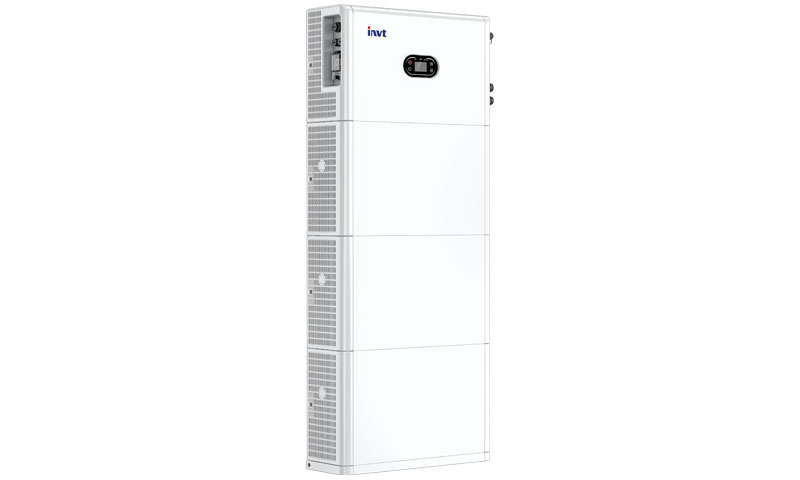

XD5KTL-AIO energy storage system (All In One System) is a combined design of a solar hybrid inverter and a battery storage system. The advantages of the All In One System are that it is quick and easy to install, does not require additional electrical connection cables, is tidy, has a beautiful appearance and looks like a part of the furniture in the house, has a stackable design, and takes up little space, making it perfect for households without a technical room (Mongolian house) or with a small technical room. The All In One System not only provides household consumption with solar electricity, but also integrates intelligent functions such as supplying excess energy to the central grid, taking energy from the grid when the solar energy is insufficient, and integrating battery system management and remote monitoring systems.

Technical specifications:

Each battery unit module has a capacity of 51.2 Volts, 100 A.h, and 5.12 kWh of energy storage.
The inverter output is 230 Volts, 50 Hz, 5 kW.
The battery storage system has a modular design.
The total battery system capacity can be expanded.
The EPS transition is less than 10 milliseconds, which can reliably protect the uninterrupted operation of equipment and power supply during sudden power outages.
RS232, RS485, CAN, WiFi, 4G, LAN, Bluetooth are supported.
Remote access and control from other devices such as mobile phones and laptops is possible

The following output power options are available for the INVT brand energy storage system.

Output power:	3 кW	4 кW	5 кW	6 кW
Battery capacity:	5.12 кWh	10.24 кWh	15.36 кWh	15.36 кWh
